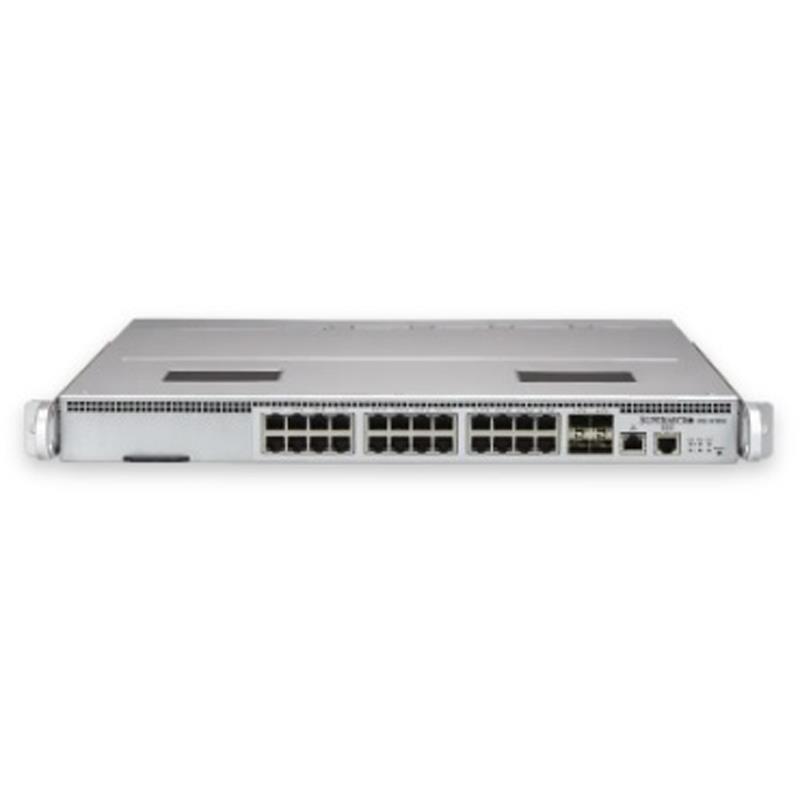

Supermicro SSE-G3624 Network Switch 24-Port 1/10G Ethernet ToR Management
Pre-loaded with the Supermicro OS (SMIS OS)
Offering twenty-four 1Gbps RJ45 Ethernet ports
Optimize deployment in standalone or top-of-rack environments
Comes with management and console ports for easy of management
Top-of-Rack Ethernet Switch, Management, 24 x 1/10G Ports - Regular
The SSE-G3624 Layer 2/3 Ethernet Switch complements the growing family of switch offerings by Supermicro in the Networking arena. Offering twenty-four 1Gbps RJ45 Ethernet ports and four 10Gbps SFP+ uplinks, the SSE-G3624 switch allows connectivity at 1Gbps to servers while aggregating traffic for connection to higher speed servers, to routers, and to other backbone network switches. The compact 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments. The pair of mounting flanges included facilitates rack-mounting installations. The SSE-G3624 switch is ideal for deployment in Data Center, Cloud and Enterprise environments with the capability of handling access for the most demanding applications.
Pre-loaded with the Supermicro OS (SMIS OS) the SSE-G3624 is ready for your networking deployment with management and configuration look-and-feel that is common to other Supermicro switches, makes the switch an attractive choice for use in new or existing networks that use other Supermicro switches - Blade or Top-of-Rack.
SSE-G3624 switch allows connectivity at 10/100/1000 to servers and additionally comes with management and console ports for easy of management.
Extra Specifications for Supermicro SSE-G3624 Network Switch 24-Port 1/10G Ethernet ToR Management
Main Specifications | ||
Device Type | 1G Data/Management Switch | |
Form Factor | 1 RU | |
Capacity | 560Gbps | |
Dimensions (WxDxH) | 445 x 356 x 43.5 mm (17.5 x 14 x 1.7 inches) | |
Networking | ||
Layer 2 | VLAN, VLAN Trunking, MAC Aging, LLDP, LACP, 802.1w Rapid Spanning Tree, 802.1s Multiple Spanning Tree Protocol, 4096 VLANs, MLAG, Jumbo Frames, IGMP v1/v2/v3 snooping, Storm Control | |
Layers 3 | Static Routing, RIPv2, OSPF, BGP, VRRP | |
Management and Monitoring | SNMP MIBs, Syslog, Critical Resource Monitoring, Mirroring, TACACS+, Sensor transceiver monitoring | |
QoS | 8 priority queues per port, Strict priority queueing, 802.1p based classification, DSCP based classification and remarking, Egress shaping / Weighted round robin (WRR), Explicit Congestion Notification (ECN) marking, 802.1Qbb Per-Priority Flow Control (PFC), 802.1Qaz Enhanced Transmission Selection (ETS), Data Center Bridging Extensions (DCBX) | |
ACL | IP ACL permit/deny, MAC ACLs, Dynamic ACL upgrade, ACL Statistics, DHCP Relay / Snooping, Rate limiting | |
Utilities | NTP, ZTP | |
Network Management | RS-232 Serial Console Port & GUI, USB Port, SNMP v1, v2, v3, Management over IPv6, Telnet and SSHv2, Syslog, Industry Standard CLI & GUI, System Logging, Environment monitoring | |
Power Supply | ||
Power Supply | Hot-pluggable power supply | |
AC Input Voltage: 100-127 / 200-240VAC, 50/60Hz | ||
150 Maximum Power (with Pluggable Optic) | ||
Safety and Compliance | ||
Safety | UL 60950-1, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950, AS/NZS 60950-1GB4943, GB4943 | |
Electromagnetic Compatibility | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN 60825-1, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A, BSMI CMS 13438 Class A, EN50082-1, EN61000-6-1, EN55024, CISPR24, EN300386, KN 61000-4 series | |
Miscellaneous | ||
Environmental Compliance | RoHS 6 Compliant | |
Features | Hot Swappable 1+1 redundant Fan Modules | |
Interfaces Speeds: 10M, 100M, 1G & 10G | ||
Operating System: SMIS OS (pre-loaded) | ||
Environmental | ||
Operating Environment | Temperature: Operating 0C to 45C | |
Humidity: Operating: 5% to 95% |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
