| Main Specifications |

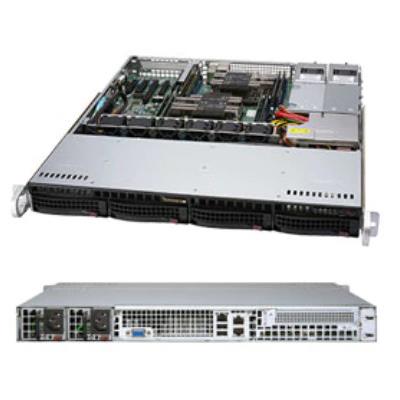

| Device Type | SuperChassis |
| Form Factor | 1U Chassis |
| Supported Motherboards | ATX 12" x 10" and Micro ATX 9.6" x 9.6" |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 19.98" (507 mm) |
| Weight | 33.5 lbs (15.2kg) |
| Enclosure Color | Black |
| Processor Support |
| Processor Support | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 full height expansion slot(s) |
| Expansion Bays Total (Free) | 4 x 3.5" hot-swap SAS/SATA - SAS or enterprise SATA HDD only recommended |
| Drive Bays |
| Peripheral Bays | 1 x slim DVD-ROM drive bay, Optional 1 x USB + COM port tray |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 1U 4-Port 12Gbps Backplane Support 4x3.5 |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, System Information LED |
| System Cooling |
| Fans | 4 x 40x28mm PWM fan - Optional 2 x fans for AOC cooling |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 800W 1U redundant power supply |
| Certification | 80PLUS Platinum Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, UL/CB |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS3-815TQ |
| Cable | 1x CBL-0071L, 2x CBL-PWCD-0160-IS |
| Fan(s) | 4x FAN-0154L4 |
| Front Panel | 1x FPB-FP813-D |
| Drive Trays | 4x MCP-220-00075-0B |
| Power Distributor(s) | 1x PDB-PT813M-S2424 |
| Power Supply Number | 2x PWS-804P-1R |
| Parts | 1x CSE-PT93L-B, 1x MCP-320-00060-0N, 2x MCP-340-00001-01, 1x MCP-260-00078-0N, 1x MCP-250-00016-0V |
| Mounting Rails | 1x MCP-290-00102-0N, 1x MCP-290-00108-0N, 1x MCP-290-00110-0N |
| Rear Window | 1x MCP-240-00086-0N |
