- Supermicro SYS-5015B-MF 1U Barebone Single Intel Xeon 3200 Series Processor Up to 8GB SATA2 2 Gigabit Ethernet

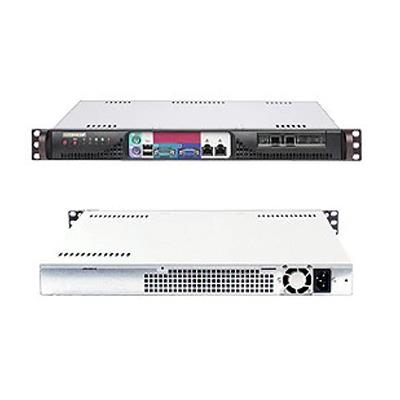

Supermicro SYS-5015B-MF 1U Barebone Single Intel Xeon 3200 Series Processor Up to 8GB SATA2 2 Gigabit Ethernet
SATA2 (3 Gbps) controller built-in, RAID 0, 1, 5, 10
2x Single-port Gigabit PCI-Express Ethernet Controllers
Supports single Intel Xeon 3200/3000 Series LGA775, processors
Four 240-pin DIMM slots, up to 8 GB of unbuffered ECC DDR2 Memory
Barebone 1U Rackmount SuperServer Single Intel Xeon 3200 Series, Intel 3210 chipset, Up to 8GB in 240 DIMM Slots, SATA2, 1x 3.5in drive bays, 2x Gigabit Ethernet BaseT LAN Ports, 260W Power Supply (SC513L-260B + X7SBi)
The SuperServer 5015B-MF is a high-end single processor 1U rackmount server based on the SC513L-260 server chassis and the X7SBi motherboard. The X7SBi supports a single Intel Xeon 3000 Series/3200 Series Processor at system bus speeds of 1333/1066/800 MHz.
Extra Specifications for Supermicro SYS-5015B-MF 1U Barebone Single Intel Xeon 3200 Series Processor Up to 8GB SATA2 2 Gigabit Ethernet
Main Specifications | ||
Device Type | SuperServer | |
Built-in Devices | Super X7SBi | |
Form Factor | 1U Rackmount - SC513L-260B | |
Dimensions (WxDxH) | Height 1.7" (43mm) x Width 16.8" (426mm) x Depth 14" (356mm) | |
Weight | 16.5 lbs (7.5kg) | |
Enclosure Color | Black | |
Processor | ||
Compatible Processors | Supports Quad-Core Intel Xeon X3300/X3200 series | |
Supports Dual-Core Intel Xeon E3100/3000 series | ||
Supports Intel Xeon processor L3360 and L3110 series | ||
Supports Intel Core2 Quad Q9000/Q8000/Q6000 series | ||
Supports Intel Core2 Duo E8000/E7000/E6000/E4000 series | ||
Supports Intel Pentium E5000/E2000 series | ||
Supports Intel Celeron E1000 and 400 series | ||
NOTE: Intel Xeon processor L3014 requires an LGA771 socket and is not supported | ||
Compatible Socket | Single LGA775 ZIF Socket | |
System Bus | 1333 / 1066 / 800 MHz system bus | |
System Memory | ||
Memory Capacity | Four 240-pin DIMM slots, Supports up to 8 GB of memory (Dual Channel) | |
Memory Type | DDR2 800/667 MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs | |
DIMM Sizes | 256 MB, 512 MB, 1 GB, 2GB, 4GB | |
Memory Voltage | 1.8V only | |
On-Board Devices | ||
Chipset | Intel 3210 chipset, ICH9R + PXH + Intel 82573V + Intel 82573L | |
SATA RAID | Intel ICH9R SATA2 (3 Gbps) controller built-in | |
RAID 0, 1, 5, 10 support (Windows Only) | ||
RAID 0, 1, 10 support (Linux) | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support | ||
SIMSO Slot - Supermicro Intelligement Management | ||
(Optional: AOC-SIMSO-HTC, AOC-SIMSO+) | ||
NOTE: AOC-SIMSO+ must use Dedicated LAN for KVM-over-LAN function | ||
Network Controllers | 2x Single-port Gigabit PCI-Express Ethernet Controllers, Intel 82573V + Intel 82573L, Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output | |
Graphics | On-board ATI ES1000 (32MB) graphics | |
Super I/O | Winbond 83627DHG chip | |
Clock Generator | CK505 | |
USB | Up to 8x USB 2.0 / 1.1 compliant ports, 2 rear ports, 4 internal headers + 2 on-board | |
Expansion Slots | ||
PCI-E | 1 Universal (x8) PCI-E slot or PCI-X 133 slot | |
Input / Output | ||
Serial ATA | Six Serial ATA ports (3 Gbps performance), One SATA hard drive supported, External SATA supported | |
IDE | One EIDE channel supports up to two UDMA IDE devices, Supports UDMA Mode 5, PIO Mode 4, and ATA/100 | |
LAN | 2x RJ45 LAN ports | |
VGA | 1x VGA Port | |
Keyboard / Mouse | PS/2 keyboard and mouse ports | |
Serial Ports | 1x Fast UART 16550 serial port, 1x internal header | |
Parallel Port(s) | 1x ECP / EEP Parallel Port | |
Peripheral Drives | ||
Floppy | 1 Floppy controller; 1.44 MB | |
System BIOS | ||
BIOS Type | 8MB Flash EEPROM with Phoenix BIOS | |
BIOS Features | Plug and Play (PnP), DMI 2.3 support, PCI 2.2, ACPI 1.0/2.0, SMBIOS 2.3, USB Keyboard support | |
Front Panel | ||
Buttons | Power On/Off button, System Reset button | |
LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat / Fan Failure LED | |
Ports | 2x USB, 2x LAN, COM, Printer Port | |
System Cooling | ||
Fans | 1x 5K RPM blower fan | |
Power Supply | ||
Power Supply | Thermal control 260W AC power supply with PFC [ 24-pin, 4-pin=12V, (2) 4-pin ] | |
Regulatory (Power Supply) | ||
Power Supply Safety / EMC | USA - UL Listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant | |
PC Health Monitoring | ||
CPU | Monitors for CPU Cores ( +1.8V, +3.3V, +5, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset), CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V, Adjustable CPU clock frequency ratio | |
FAN | Total of six 4-pin fan headers, 6x fans with tachometer monitoring, Status monitor with firmware / software speed control, Status monitor for on/off control, Support 3-pin fans (without speed control), Low noise fan speed control, Pulse Width Modulated (PWM) fan connector | |
Temperature | Monitoring for CPU and chassis environment, CPU Thermal Trip support, Thermal Monitor (TM2) Support, PECI | |
LED | CPU / System Overheat LED, +5 Standby alert LED | |
Other Features | Chassis intrusion detection, Chassis intrusion header | |
Environmental | ||
Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) | |
Non-operating Relative Humidity: 5 to 95% (non-condensing) | ||
Operating Temperature: 10°to 35°C (50°to 95°F) | ||
Non-operating Temperature: -40°to 70°C (-40°to 158°F) | ||
Parts List - (Items Included) | ||
Motherboard / Chassis | 1x MBD-X7SBi-O / 1x CSE513L-260B | |
Cable | 1x CBL-0061L, 1x CBL-0087 | |
Fan(s) | 1x FAN-0059 | |
Fan Holders | 1x CSE-PT64 | |
Heatsink / Retention | 1x SNK-P0016P | |
Riser Cards | 1x CSE-RR1U-ELi, 1x CSE-RR1U-Xi | |
Air Shroud | 1x MCP-310-51301-0B | |
Power Supply Number | 1x PWS-0055 |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
