| Motherboard |
| Motherboard | Super X11SWN-E-WOHS |
| Processor/Cache |
| CPU | Single Socket FCBGA-1528 |
| System-on-Chip |
| CPU TDP support 15W |
| 8th Generation Intel® Core™ i5-8365UE Processor |
| Note | BIOS version 2.0 or above is required |
| System Memory |
| Memory Capacity | Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots |
| Memory Type | DDR4 up to 2400MHz |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Single LAN with Intel® PHY I219LM |
| Single LAN with Intel® I210IT |
| Audio | ALC 888S HD Audio |
| Video | Intel® UHD Graphics 620 |
| Input / Output |

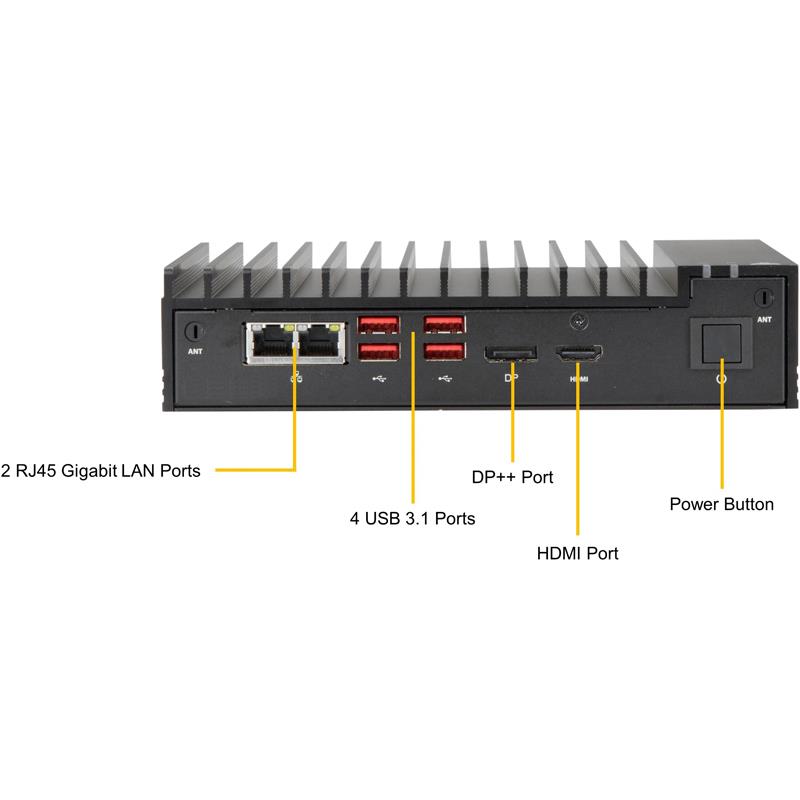

| USB | 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A) |
| Video Output | 1 HDMI and 1 Display Port |

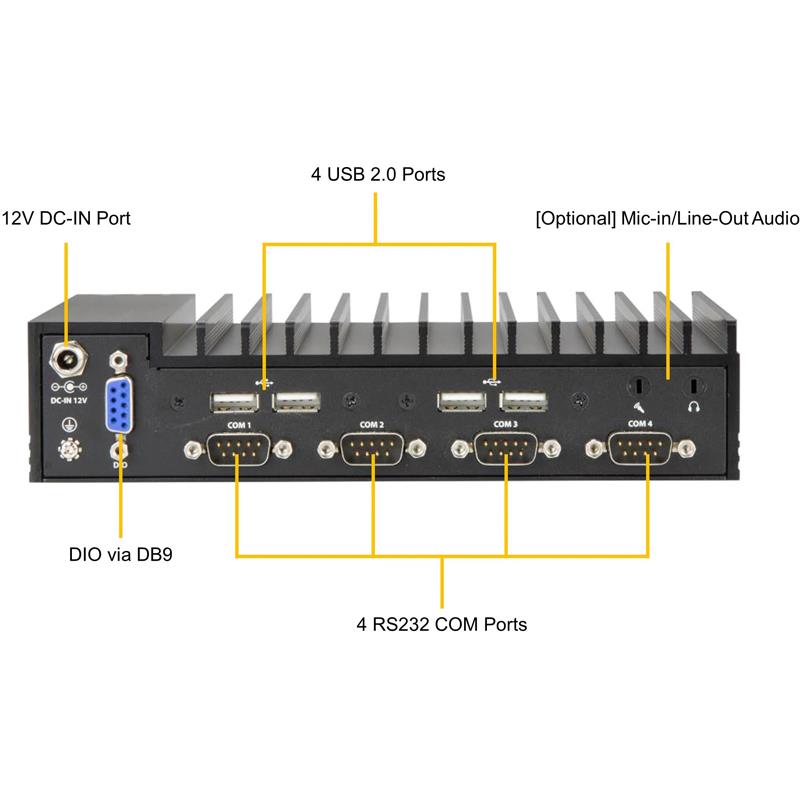

| COM Port | 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control |
| Audio | 1 HD Audio header (Mic-in/Line-Out) (option) |
| Others | 8-bit configurable GPIO via DB9 |
| Chassis |
| Form Factor | 3.5" SBC |
| Model | CSE-E101-02 |
| Dimensions |
| Width | 7.68" (195mm) / 11.81" (300mm) - pkg. |
| Height | 1.73" (44mm) / 5.12" (130mm) - pkg. |
| Depth | 5.94" (151mm) / 11" (279mm) - pkg. |
| Weight | Gross Weight: 4.5 lbs (2.04 kg) |
| Net Weight: 2.65 lbs (1.2 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED and Hard drive activity LED |
| Expansion Slots |
| M.2 | Key: B-Key, M-Key, E-Key |
| M.2 2242/3042/2280 |
| B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder |
| System Cooling |
| Fans | Fan-less design |
| Power Supply |
| Power Supply | Lockable 12V DC 60W power adapter |
| System BIOS |
| BIOS Type | AMI UEFI |
| Management |
| Software | Watch Dog |
| AMT |
| vPro |
| SuperDoctor® 5 |
| Power Configurations | ACPI Power Management |
| Control of power-on for recovery from AC power loss |
| Force Power On by Jumper |
| CPU thermal trip support for processor protection |
| +12V ~ +24V DC Wide power range input |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis |
| Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature. |
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow |
| Product SKUs |
| Product SKUs | SuperServer E100-9W-E (Black) |
