- Supermicro SBI-7428R-C3 Blade Barebone Dual Processor

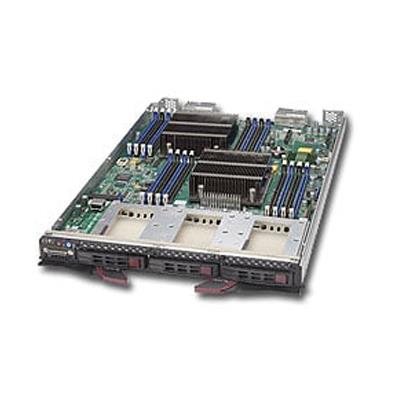

Supermicro SBI-7428R-C3 Blade Barebone Dual Processor
Processor Blade Intel C612 Chipset w/ 2x Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v3 family processors, QPI up to 9.6GT/s - Supports up to 256GB DDR4 VLP ECC RDIMM (16x 288-pin DDR4 DIMM sockets) - On-Board : 4x QDR (40Gbps) / FDR (56Gbps) InfiniBand or 10GbE mezzanine HCA (Optional), LSI 3108 SAS3 (12Gbps) controller HW RAID 0 / 1 / 5 support, IPMI 2.0, KVM over IP, Virtual Media, Intel i350 2x Gigabit Ethernet, Aspeed AST2400 BMC Graphics - Expansion and HDD : 3x Hot-Plug 2.5in SAS3 HDDs/SSDs, or 3x Hot-Plug 2.5in NVMe Support (option) - Includes : 1x Front Connector for SMCI KVM Card, 1x Add-on Module (AOM-B3108-H8), 1x B10DRC Motherboard, 1x CSE-714M-230B (Black)
1. 168 CPUs per 42U Rack
2. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
3. Intel® C612 Express chipset
4. Up to 512GB VLP ECC RDIMM; 16 DIMM
5. Intel® i350 Dual port Gigabit Ethernet
6. IPMI 2.0, KVM over IP, Virtual Media
7. FDR-10/QDR InfiniBand or 10GbE mezzanine HCA
8. 3x 2.5" Hot-swap HDD/SSD Bays
9. SAS3 via Broadcom 3108; HW RAID 0, 1, 5
10. Graphics: Aspeed AST2400 BMC
Extra Specifications for Supermicro SBI-7428R-C3 Blade Barebone Dual Processor
System Memory | ||
DIMM Sizes | VLP RDIMM: 32GB, 16GB, 8GB | |
Error Detection | Corrects single-bit errors | |
Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
Up to 512GB VLP ECC RDIMM | ||
Memory Voltage | 1.2 V | |
Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
System Memory | NOTE: 14-Blade can only use VLP (Very Low Profile) memory module. | |
On-Board Devices | ||
Chipset | Intel® C612 Express chipset | |
IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
Network Controllers | VMDq support for better performance of virtualization | |
Intel® I/OAT 3 support for fast, scaleable, and reliable networking | ||
Intel® I350 Dual port Gigabit Ethernet | ||
SAS | Broadcom 3108 SAS3 (12Gbps) controller | |
HW RAID 0, 1, 5 support | ||
InfiniBand Support | 4x FDR-10/QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional) | |
Graphics | Aspeed AST2400 BMC | |
Input / Output | ||
KVM | 1x Front Connector for SMCI KVM Card | |
DOM | 2x Super DOM (Disk on Module) ports | |
TPM | 1x TPM 1.2 20-pin Header | |
System BIOS | ||
BIOS Features | USB Keyboard support | |
Plug and Play (PnP) | ||
PCI 2.2 | ||
ACPI up to 3.0 | ||
BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
Front Panel | ||
Buttons | Power On/Off button | |
KVM button | ||
Connector | SUV (Serial/USB/Video) & KVM Connector | |
LEDs | Power LED | |
UID / KVM LED | ||
Network Activity LED | ||
Fault LED | ||
Drive Bays | ||
Hot-swap | 3x 2.5" Hot-swap SAS/SATA/SSD bays | |
Electromagnetic Compatibility (EMC) | ||
Europe | EN55022 - Emissions | |
EN55024 - Immunity | ||
EN61000-3-2 - Harmonics | ||
EN61000-3-3 - Voltage Flicker | ||
CE - EMC Directive 89/336/EEC | ||
United States / Canada | FCC- Emissions (US) Verification | |
Safety Compliance | ||
Germany | TUV | |
United States / Canada | UL60950-1 - CSA/CUL 60950-1 | |
Europe | EN60950-1, CE - Low Voltage Directive 73/23/EEE | |
Product SKUs | ||
Product SKUs | ||
Motherboard | ||
Motherboard | Super B10DRC | |
Processor/Cache | ||
CPU | Dual Socket R3 (LGA 2011) | |
Intel® Xeon® processor E5-2600 v4 † / v3 family | ||
Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
System Bus | QPI up to 9.6 GT/s | |
Note | † BIOS version 2.0 or above is required | |
Dimensions | ||
Height | 11.32" (288 mm) | |
Width | 1.19" (30.2 mm) | |
Depth | 18.9" (480mm) | |
Weight | 8.6 lbs (3.9 kg) | |
Available Colors | Black | |
Operating Environment / Compliance | ||
Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
Operating Temperature: 10°to 35°C (50°to 95°F) | ||
Non-operating Temperature: -40°to 70°C (-40°to 158°F) | ||
Non-operating Relative Humidity: 5 to 95% (non-condensing) | ||
Thermal Limitation | ||
Note | SuperBlade full enclosure with four 1620W power supplies will have thermal limitation of 30°C ambient temperature. |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-B10DRC -O-P | 1 | Super B10DRC Motherboard | |
Motherboard / Chassis | CSE-714M-230B | 1 | 14-Black Front Blade With Three 2.5" HDD | |
Hard Drive Tray | MCP-220-00047-0B | 3 | Black 2.5" Hard Drive Tray | |
Front Panel Control | MCP-280-KVM1 | 1 | Power & KVM buttons, LED, KVM connector | |
Air Shroud | MCP-310-00074-0N | 1 | Air shroud set for B10DRi / B10DRC on 14-Blade CSE-714M-230B, HF, RoHS/REACH | |
Add-on Module | AOM-B3108-H8-O-P | 1 | AOM with Broadcom 3108 |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
TPM security module(optional, not included) | AOM-TPM-9655H | $ 39.00 | 0 | TPM module (Horizontal) with Infineon 9655, RoHS/REACH,PBF | ||
SuperDOM | - | 0 | Supermicro SATA DOM Solutions [Details] | |||
Heatsink / Retention | SNK-P1033P | $ 32.50 | 2 | Heatsink for Intel CPU | ||
Networking | AOC-IBH-X3QD | 1 | Dual Port, Low Latency InfiniBand Adapter Cards For SuperBlade | |||
Networking | AOC-IBH-X3QS | 1 | Single Port, Low Latency InfiniBand Adapter Cards For SuperBlade | |||
Networking | AOC-XEH-iN2 | $ 274.00 | 1 | Dual Port 10G Ethernet AOC for Blade | ||
Networking | AOC-IBH-XDD | 1 | InfiniBand Dual-Port 4x DDR 20Gbps Mezzanine HCA (Mellanox ConnectX chip) | |||
Networking | AOC-IBH-XQD | 1 | InfiniBand Dual-Port 4x QDR 40Gbps Mezzanine HCA (Mellanox ConnectX-2 chip) | |||
Networking | AOC-IBH-XQS | $ 623.50 | 1 | InfiniBand Single port 4x QDR 40Gbps Mezzanine HCA (Mellanox ConnectX chip) | ||
Networking | AOC-IBH-XDS | $ 506.50 | 1 | InfiniBand Single port 4x DDR 20Gbps Mezzanine HCA (Mellanox ConnectX chip) | ||
Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
E-mail: | returnservices@wiredzone.com |
