Main Specifications |
Device Type | SuperChassis |
Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) |
Color | Black |
Form Factor | 2U chassis support for max. motherboard size - 13.68" x 13", E-ATX and ATX |
Weight | Net Weight: 35 lbs (15.9kg) - Gross Weight: 57 lbs (25.9kg) |
Processor Support |
Processor Support | Supports dual, single Intel / AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | WIO Slots (4x Full-height, Full-length + 3x Low-profile) |
Drive Bays |

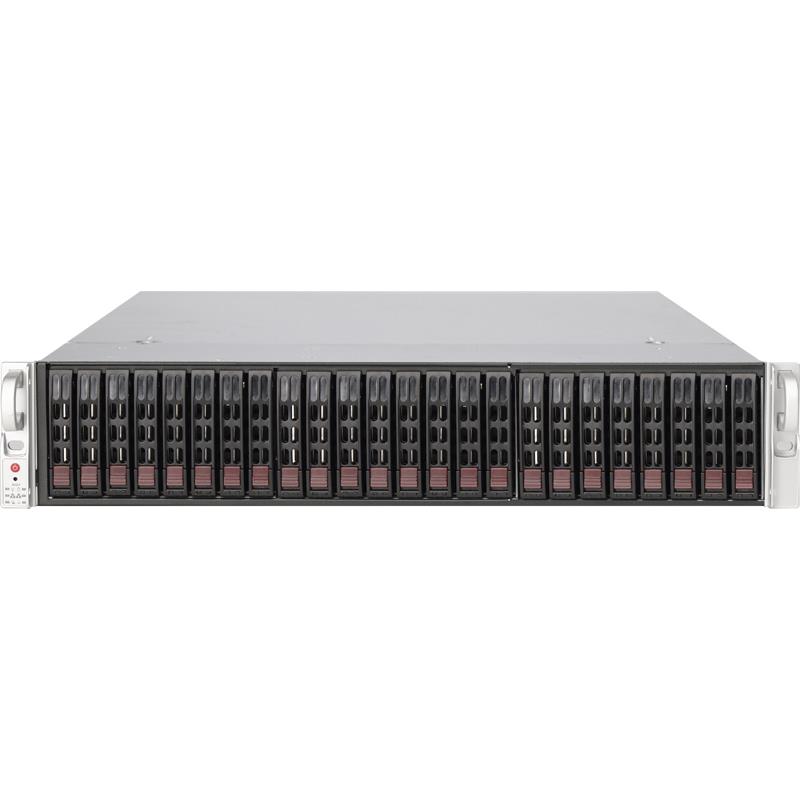

Hot-swap | 24x 2.5" Hot-swap SAS3/SATA drive bays and Optional 2x 2.5" Hot-swap SATA3 Drive Bays for OS mirroring - SAS or enterprise SATA HDD only recommended |
Front Panel |
Buttons | Power On/Off button, System Reset button |
LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED |
System Cooling |
Fans | FAN-0126L4 |
| 3x 80mm 7000 RPM hot-swap PWM fans |
Miscellaneous |
Applications | Chassis Intrusion switch |
SAS / SATA Backplane |
SAS / SATA Backplane | SAS3 Single Expander Backplane features: Up to 12Gbps support, In-band SES-2 Enclosure Management Support, SAS3/SATA3 support, 4x Mini-SAS HD connectors, Scalability through cascading |
Operating Environment (System) |
Humidity Range | 8% ~ 90% (non-condensing) |
Non-Operating Temperature Range | -40C ~ 60C (-40F ~ 140F) |
Operating Temperature Range | 5C ~ 35C (41F ~ 95F) |
Environmental Parameters |
Operating Humidity | 5 - 95% (non-condensing) |
Power Supply |
Certification | 80PLUS Platinum Certified |
Power Supply | 920W high-efficiency AC-DC Redundant power supplies with PMBus and I2C |
| PWS-920P-SQ |
Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
Standard Parts List |
Accessory | ACC216A-00-2B |
Chassis | CSE-216BE1C-R920WB |
Front Panel | FP826-D, TB826 |
Power Distributor | PDB-PT829-S8824 |
Rear Window | MCP-240-82609-0N |
Parts List - (Items Included) |
Air Shroud | MCP-310-29001-0N |
Backplane | BPN-SAS3-216EL1 |
Drive Trays | MCP-220-00047-0B, MCP-290-82607-0N |
Mounting Rails | MCP-410-00007-0N, MCP-290-00053-0N |
Parts List |
Cables | CBL-0217L, CBL-0071L, CBL-0088, CBL-0160L, CBL-0182L |
