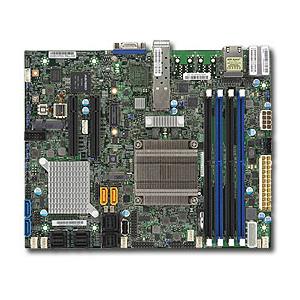

System Memory |
DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
Memory Capacity | Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots |
| Up to 128GB Registered ECC RDIMM, DDR4-2133MHz |
Memory Voltage | 1.2V |
Memory Type | 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM |
On-Board Devices |
Chipset | System on Chip |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
Network Controllers | Dual LAN with 10G SFP+ from D-1500 SoC Dual LAN with 1GbE with Intel® I210 Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) |
Graphics | Aspeed AST2400 BMC |
SATA | SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| RSTe |
| Broadcom® 2116 SW controller for 16 SATA3 (6 Gbps) ports; |
| SAS2 and SATA3 |
Input / Output |
LAN | 2 10G SFP+ LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| 2 1GbE LAN ports |
SATA | 4 SATA3 (6Gbps) port |
USB | 2 USB 3.0 ports (2 rear) |
| 5 USB 2.0 ports (4 headers, 1 Type A) |
Video Output | 1 VGA port |
Serial Port / Header | 1 COM Port (1 header) |
TPM | 1 TPM Header |
System BIOS |
BIOS Features | UEFI 2.4 |
| ACPI 5.0 |
| USB Keyboard support |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| Hardware BIOS Virus protection |
| SMBIOS 2.8 |
BIOS Type | 128Mb SPI Flash with AMI BIOS |
Management |
Power Configurations | +12V DC Power Input |
| ACPI Power Management |
| Control of power-on for recovery from AC power loss |
| ATX Power connector |
| CPU thermal trip support for processor protection |
| M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL |
Software | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog |
Product SKUs |
Product SKUs |
Physical Stats |
Form Factor | Flex ATX |
Dimensions | 9.0" x 7.25" (22.86cm x 18.42cm) |
Processor/Cache |
CPU | Single Socket FCBGA1667 supported, CPU TDP support 35W |
| Intel® Xeon® Processor D-1537. |
Cores / Cache | 8 cores, 16 threads / 12MB cache |
Expansion Slots |
PCI-E | 2 PCI-E 3.0 x8 |
| M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support |
M.2 | 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280/22110 |
PC Health Monitoring |
Voltage | +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, HT, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature, VBAT |
FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors |
Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
LED | CPU / System Overheat LED |
Other Features | 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL |
Operating Environment |
Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
