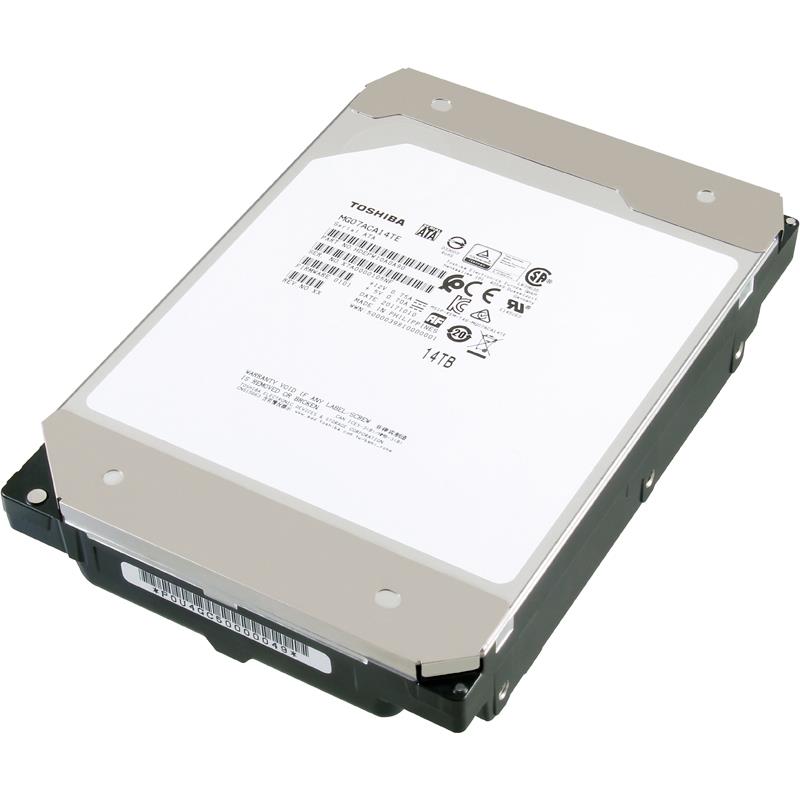

Toshiba MG07ACA14TE Hard Drive 14TB SATA 6Gb/s 7200RPM 3.5in, 512e - MG07ACA Series
• Design for superior storage density
• 14TB - 24x7 operation - 512 Emulation
• File and Object-based storage infrastructure
• Low operational power - 7200 rpm Performance
Hard Drive 14TB SATA 6Gb/s 7200RPM 3.5in, 256MB Buffer, 512e, Internal - Helium, MG07ACA Series, Enterprise Class - OEM
• 7,200 rpm Performance
• SATA 6.0 Gbit/s Interface
• Industry Standard 3.5-inch 26.1 mm Form Factor
• Innovative 9-disk helium-sealed design for superior storage density
• Low operational power profile, providing excellent power efficiency (W/TB) for better TCO
Extra Specifications for Toshiba MG07ACA14TE Hard Drive 14TB SATA 6Gb/s 7200RPM 3.5in, 512e - MG07ACA Series
Main Specifications | ||
Capacity | 14TB | |
Device Type | Hard drive - internal - 512 emulation | |
Dimensions (WxDxH) | Width 101.85 x Height 26.1 x Length 147.0 mm | |
Interface Type | SATA-600 | |
Weight | 720 g Max | |
Form Factor | 3.5-inch | |
Hard Drive | ||
Buffer Size | 256 MB | |
Spindle Speed | 7200 RPM | |
Performance | ||
Drive Transfer Rate | 248 MiB/s Typ (Sustained) | |
Load / Unload Cycles | 600,000 times | |
Reliability | ||
Availability (hrs/day x days/wk) | 24 hours/day, 7 days/week | |
Non-Recoverable Errors | 10 error per 1016 bits read | |
Miscellaneous | ||
MTBF | 2.5 Million | |
Applications | Tier 2 Business-Critical Servers and Storage Systems | |
Mid-line / Nearline Business Critical Workloads | ||
Cloud-scale Storage Infrastructure | ||
Software-defined data center infrastructure | ||
File- and Object-based storage infrastructure | ||
Features | Innovative 9-disk helium-sealed design for superior storage density | |
Low operational power profile, providing excellent power efficiency (W/TB) for better TCO | ||
7,200 rpm Performance | ||
SATA 6.0 Gbit/s Interface | ||
Industry Standard 3.5-inch 26.1 mm Form Factor | ||
550 Total TB Transferred per Year Workload Rating | ||
Environmental Parameters | ||
Humidity Range Operating | Operating: 5 % to 90 % R.H. (No condensation) - Non-Operating: 5 % to 95 % R.H. (No condensation) | |
Min Operating Temperature | Ambient temperature Operating: 5 C to 55 C - Non-Operating: - 40 C to 70 C | |
Shock Tolerance | Operating: 686 m/s2 { 70 G } ( 2 ms duration ) - Non-Operating: 2,450 m/s2 { 250 G } ( 2 ms duration ) | |
Vibration Tolerance | Operating: 7.35 m/s2 { 0.75 G } ( 5 to 300 Hz ) | |
Operating: 2.45 m/s2 { 0.25 G } ( 300 to 500 Hz ) | ||
Non-Operating: 29.4 m/s2 { 3.0 G } ( 5 to 500 Hz ) | ||
Power | ||
Power Consumption | 4.22 W Typ (Idle - A) |
