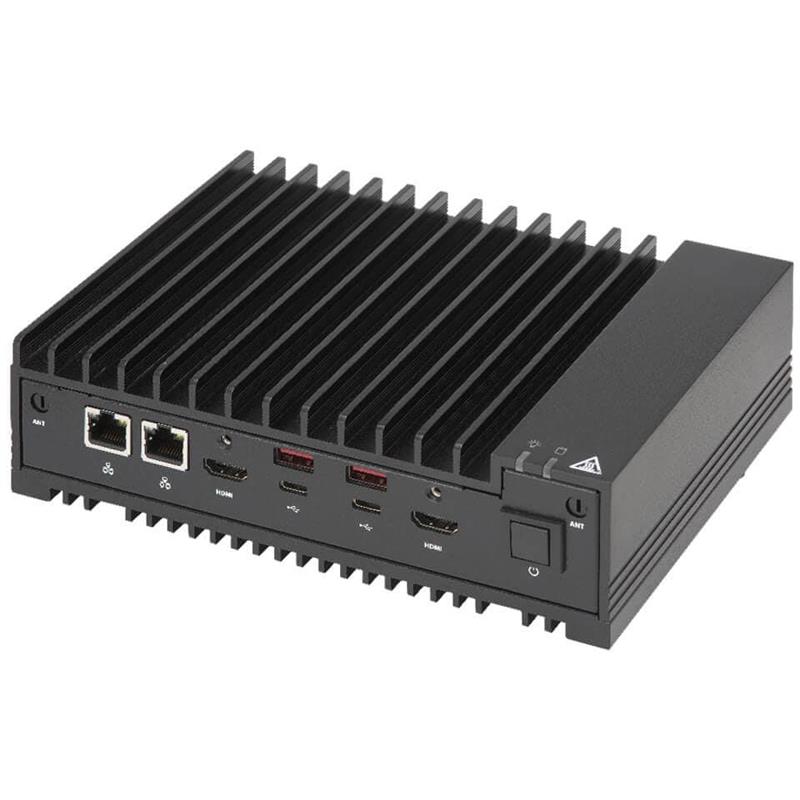

Supermicro SYS-E100-13AD-C IoT 3.5" SBC Embedded Intel Celeron 7305E Processor
2 RJ45 2.5 Gigabit Ethernet LAN port
Support Intel Celeron 7305E Processor
Including 2x 2.5GbE BaseT with Intel I225-IT
Contains 2 DIMM slots, up to 64GB memory capacity
Barebone 3.5" SBC, Embedded Intel Celeron 7305E Processor, 1.00GHz 5-Core. Up to 64GB in 2 DIMM slots, SO-DIMM, Intel System on Chip, On-Board: Intel 600 Series Controller for 1 SATA3 Port, M.2 M/B/E-Key with Nano SIM Card Slot, Network Connectivity: 2 RJ45 2.5 Gigabit Ethernet LAN Port, 84W Lockable AC to DC power Adapter Without Power Cord, (SYS-E100-13AD-C + X13SAN-C-WOHS)
Key Applications
Industrial Automation
Retail Smart Medical Expert Systems
Digital Signage Kiosk
Interactive info system
IoT Gateway for Smart Factory
Smart Building
Security and Surveillance
Key Features
12th Generation Intel Celeron 7305E & Core i7-1265UE/i5-1245UE/i3-1215UE
2x DDR5-4800MHz Non-ECC SO-DIMM max 64GB
M.2 M/B/E-Key with Nano SIM Card Slot
2x LAN 2.5GbE
Fanless (Op. Temperature 0C ~ +50C)
4 Independent Displays: HDMI2.0b/1.4b + DP 1.4a (Alt mode USB Typ-C)
Extra Specifications for Supermicro SYS-E100-13AD-C IoT 3.5" SBC Embedded Intel Celeron 7305E Processor
System Memory | ||
Memory Voltage | 1.1V | |
Memory | View Memory Options | |
Slot Count: 2 DIMM slots/2 Channels | ||
Max Memory (2DPC): Up to 64GB 4800MT/s non-ECC DDR5 SO-DIMM | ||
On-Board Devices | ||
Chipset | intel System on Chip | |
Network Connectivity | View AOC Options | |
2 RJ45 2.5GbE with Intel® I225-IT | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
LAN | 2 RJ45 2.5 GbE LAN port(s) (Intel® I225-IT) | |
USB | 2 USB 3.2 Gen1 Type-C port(s) (front) | |
2 USB 3.2 Gen1 Type-A port(s) (front) | ||
4 USB 2.0 Type-A port(s) (Rear) | ||
Video | 1 HDMI 2.0b port(s) (Front) | |
1 HDMI 1.4b port(s) (Front) | ||
1 Mini-DP 1.4 port(s) (Front) | ||
Serial | 4 COM port(s) (Rear) | |
TPM | 1 TPM Onboard/port 80 | |
System BIOS | ||
BIOS Type | AMIUEFI | |
BIOS Features | PCI F/W 3.0 | |
ACPI 6.4 | ||
SMBIOS 3.5 or later | ||
UEFI 2.8 | ||
Front Panel | ||
Buttons | Power On/Off | |
LED | LAN1 activity | |
LAN2 activity | ||
Power status | ||
HDD Status | ||
Product SKUs | ||
Product SKUs | SYS-E100-13AD-C | |
Motherboard | ||
Motherboard | Super X13SAN-C-WOHS | |
Processor | ||
CPU | Intel® Celeron® Processor 7305E | |
Single FCBGA-1744 | ||
Core Count | Up to 5C/10T; Up to 8MB Cache | |
Note | Supports up to 15W TDP CPUs (Air Cooled) | |
Management | ||
Software | KVM with dedicated LAN | |
Redfish API | ||
SuperDoctor® 5 | ||
IPMI 2.0 | ||
Supermicro Update Manager (SUM) | ||
Supermicro Server Manager (SSM) | ||
Super Diagnostics Offline | ||
Power configurations | ACPI Power Management | |
CPU thermal trip support for processor protection | ||
DC 12V~24V Wide power range input | ||
Control of power-on for recovery from AC power loss | ||
Force power-on by jumper | ||
Security | ||
Hardware | Trusted Platform Module (TPM) 2.0 | |
Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
Features | Cryptographically Signed Firmware | |
Secure Boot | ||
Secure Firmware Updates | ||
Automatic Firmware Recovery | ||
Supply Chain Security: Remote Attestation | ||
Runtime BMC Protections | ||
System Lockdown | ||
Chassis | ||
Form Factor | Fanless Embedded | |
Model | CSE-E101-04 | |
Dimensions and Weight | ||
Height | 1.73" (44 mm) | |
Width | 7.68" (195 mm) | |
Depth | 5.94" (150 mm) | |
Package | 5.12" (H) x 11.81" (W) x 11" (D) | |
Weight | Gross Weight: 4.3 lbs (1.95 kg) | |
Net Weight: 2.16 lbs (0.98 kg) | ||
Palletized Packing (W x H x L) | 54.3" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm) | |
Available Color | Black | |
Drive Bays / Storage | ||
M.2 | View M.2 Options | |
1 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2242/2280) | ||
1 M.2 SATA slot(s) (B-key 2242/2280; USB 3.0) | ||
System Cooling | ||
Fans | 1 heavy duty fans with optimal fan speed control | |
Power Supply | ||
AC Input | 84W: 100-240Vac / 47-63Hz | |
Operating Environment | ||
ROHS | RoHS Compliant | |
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X13SAN-C-WOHS | 1 | Super X13SAN-C-WOHS Motherboard | |
Motherboard / Chassis | CSE-E101-04 | 1 | Fanless Embedded Chassis | |
Cable | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
Cable | CBL-CUSB-0985 | 2 | USB 2.0,INT-EXT,2 PORT,TYPE-A-2X5/P2.00, 18CM | |
Cable | CBL-CUSB-1047 | 1 | SERIAL, DB9F TO 2X5F/P2.00,INT TO EXT,FLAT, 30CM, 28AWG | |
Cable | CBL-OTHR-1046 | 1 | 2x LED (green, orange) to 8P/F/P2.00 + push button switch, 32CM, 26AWG | |
Power Supply | MCP-250-10137-0N | 1 | 84W Lockable AC to DC power adapter w/o power cord - EN62368 | |
Heatsink / Retention | MCP-350-10103-0N | 1 | for X13SAN in system | |
Manual | MNL-2622-QRG | 1 | E100-13AD-H/E/L/C Quick Reference Guide |
