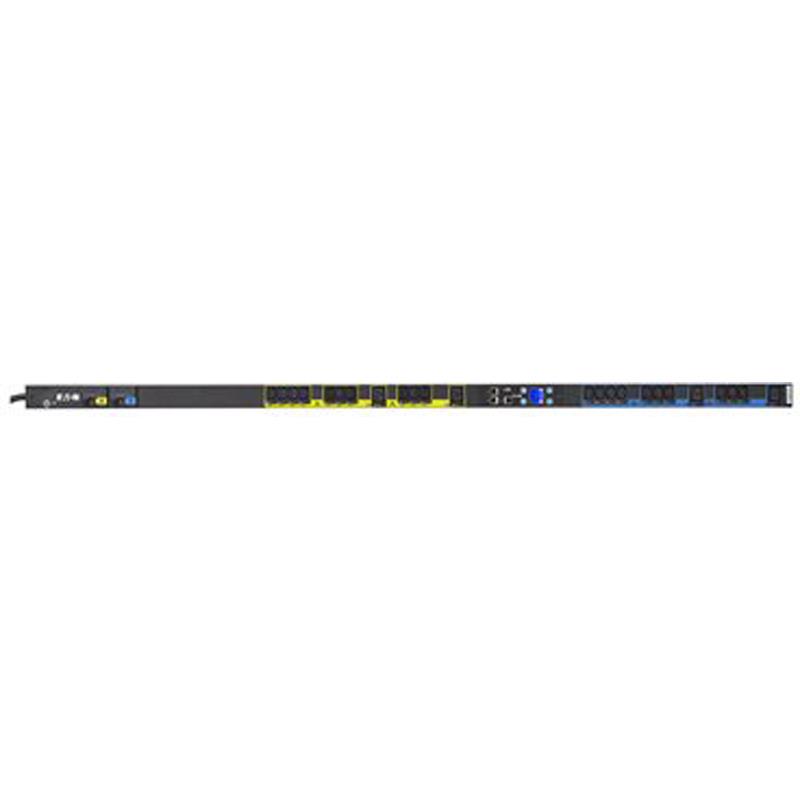

Eaton EMA107-10 ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed
Outlet switching allows for on, off or reboot of individual outlets
The high accuracy meter will measure current, voltage, power and energy
The robust design is UL rated to operate at 140 degrees F (60 degrees C)
ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 5760 W - Network (RJ-45) - 38U - Vertical 20XC13 4XC19
Eaton Managed rack PDUs, also known as Switched PDUs, allow you to monitor and control critical factors such as voltage, current and power factor.
This level of information allows you to make the right decision when it comes to energy consumption in your data center.
Our most advanced rack PDUs, Eaton Managed units also feature outlet switching and remote site management.
Extra Specifications for Eaton EMA107-10 ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed
| Main Specifications | ||
| Device Type | Power distribution unit - rack-mountable | |
| Height (Rack Units) | 38U | |
| Dimensions (WxDxH) | 2 in x 2.1 in x 66.5 in | |
| Color | Black | |
| Power Device | ||
| Input Voltage | AC 200-240 V | |
| Frequency Required | 50 - 60 Hz | |
| Input Connectors | 1 x power NEMA L6-30 | |
| Power Output Connectors Details | 20 x power IEC 60320 C13, 4 x power IEC 60320 C19 | |
| Max Electric Current | 24 A | |
| Power Capacity | 5.76 kW | |
| Circuit Protection | Circuit breaker | |
| Networking | ||
| Remote Management Interface | Ethernet 10/100, RS-232 | |
| Expansion / Connectivity | ||
| Expansion / Connectivity | 1 x management (Ethernet) - RJ-45, 1 x management (RS-232) - RJ-45 | |
| Miscellaneous | ||
| Cables Included | Power cable - integrated - 10 ft | |
| Features | LCD display, voltage monitoring, vertical orientation | |
| Compliant Standards | cULus approvals | |
| Environmental Parameters | ||
| Min Operating Temperature | 32 °F | |
| Max Operating Temperature | 140 F | |
