Supermicro SYS-E403-9D-14CN-FRN13+ Box PC Barebone Intel Xeon D-2177NT Processor, Up to 512GB LRDIMM SATA3 4x 10G SFP+ via SoC

  • Four internal SATA3 2.5" drive bays

  • 800W Redundant Power Supplies with PMBus

  • Intel Xeon processor D-2177NT, TDP support 105W

  • Universal Customer Premise Equipment Applications

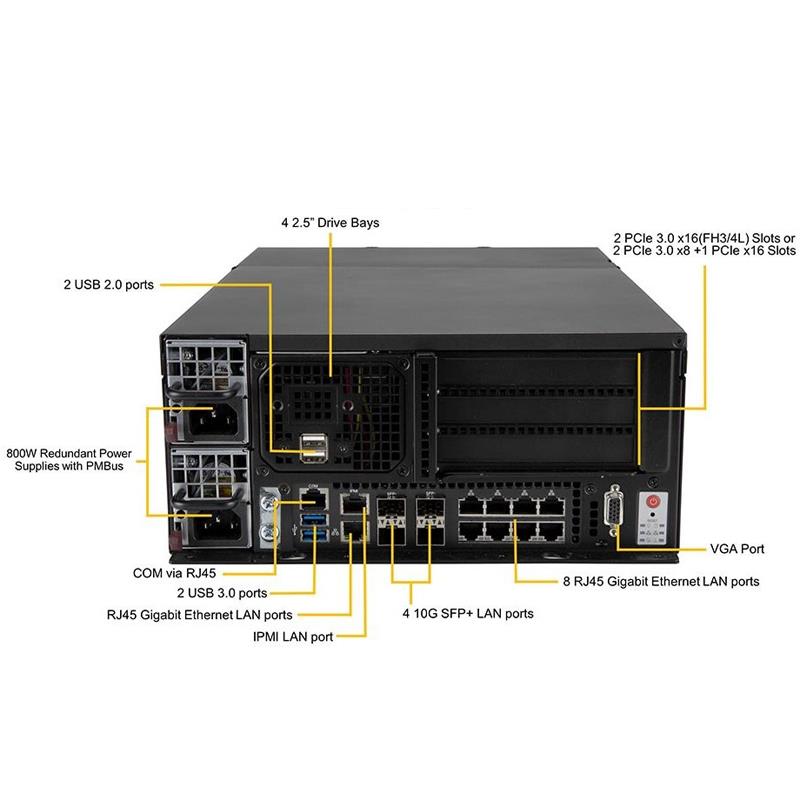

Barebone Box PC SuperServer Intel Xeon D-2177NT, System on Chip, Up to 512GB in 4 DIMM Slots, SATA3, 4x 2.5in drive bays, 4x 10G SFP+ via SoC, 800W Redundant Power Supply (CSE-E403iF-000NDBP2 + X11SDW-14CN-TP13F+)



    Option not available


    This combination does not exist.

    Add to Cart

    Key Applications

    • Multi-Access Edge Computing (MEC)

    • Universal Customer Premise Equipment (uCPE)

    • Network Function Virtualization (NFV)

    • Edge Computing, Vehicle to Everything Application (C-V2X / V2X)

    Key Features

    • Intel Xeon D-2177NT Processor, 14 Cores, 28 Threads, 1.9 GHz, 105W

    • Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz, in 4 DIMM slots

    • 2 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FH3/4L) slots

    • 4 Internal 2.5" drive bays

    • M.2: 1 M-Key 2280/22110, 1 E-Key 2230, 1 B-Key, 3042

    • 9 GbE (one for Ethernet management), 4x 10G SFP+, 1 Dedicated IPMI LAN port

    • 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA via BMC

    • 800W Redundant Power Supplies Platinum Level Certified

    Extra Specifications for Supermicro SYS-E403-9D-14CN-FRN13+ Box PC Barebone Intel Xeon D-2177NT Processor, Up to 512GB LRDIMM SATA3 4x 10G SFP+ via SoC

    Main Specifications
    Device TypeSuperServer E403-9D-14CN-FRN13+
    Built-in DevicesSuper X11SDW-14CN-TP13F+
    Form FactorBox PC - CSE-E403iF-000NDBP2
    Dimensions (WxDxH)Height 4.62" (117mm) x Width 10.5" (267mm) x Depth 16" (406mm)
    WeightGross Weight: 23 lbs (10.43 kg) - Net Weight: 17 lbs (7.7 kg)
    Enclosure ColorBlack
    Embedded ProcessorIntel Xeon processor D-2177NT, CPU TDP support 105W
    Cache/Core14 Cores, 28 Threads
    System Memory
    Memory Capacity4 DIMM slots, Up to 512GB DDR4 ECC LRDIMM, Up to 256GB DDR4 ECC RDIMM
    Memory Type2666/2400/2133MHz ECC DDR4 L/RDIMM, Operating speed up to 2400MHz
    DIMM Sizes128GB, 64GB, 32GB, 16GB
    Memory Voltage1.2V
    On-Board Devices
    SATA RAIDSATA3 (6Gbps) ports via SoC controller
    Network Controllers4x 10G SFP+ via SoC, 8x 1GbE with Intel I350-AM4, Single 1GbE with Intel I210
    IPMISupport for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    VideoVGA via Aspeed AST2500 BMC
    Input / Output
    SATA4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
    LAN9 RJ45 Gigabit Ethernet LAN ports, 4 10G SFP+ LAN ports, 1 RJ45 Dedicated IPMI LAN port
    USB2 USB 3.0 ports (front), 2 USB 2.0 ports (front)
    VGA1x VGA Port
    Serial Port / Headers1 COM via RJ45
    System BIOS
    BIOS Type128Mb SPI Flash with AMI BIOS
    SoftwareIntel Node Manager, IPMI 2.0, NMI, SUM, Watch Dog, SuperDoctor 5
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDsPower LED, Hard drive activity LED, Network activity LEDs, System Information LED
    Expansion / Connectivity
    Expansion Slots Total (Free)2 PCI-E 3.0 x16 (FH3/4L) slots or 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FH3/4L) slots
    M.21 M.2 M-Key , 2280/22110
    1 M.2 E-Key , 2230
    1 M.2 B-Key , 3042
    Expansion Bays Total (Free)4 Internal 2.5" drive bays
    System Cooling
    Fans3x 80x80mm PWM redundant fans
    Power Supply
    Power Supply800W Redundant Power Supplies with PMBus
    Certification80PLUS Platinum Level
    Compliant StandardsRoHS
    Operating EnvironmentNon-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
    Parts List - (Items Included)
    Motherboard / Chassis1x MBD-X11SDW-14CN-TP13F+ / 1x CSE-E403iF-000NDBP2
    Add-on Module1x AOM-SDW-B16X2-P
    Cable2x CBL-0082L, 1x CBL-CDAT-0850, 1x CBL-CUSB-0831, 1x CBL-PWCD-0260-IS, 2x CBL-SAST-0538
    Fan(s)3x FAN-0201L4
    Parts1x MCP-260-00153-0B
    Power Supply Number2x PWS-804P-1R
    Power Distributor(s)1x PDB-PT403-8824
    Warranty:3 years labor, 1 year parts, 1 year advanced replacement (DOA)
