Supermicro SYS-E100-9W-IA-H 3.5in SBC Single Intel Core i7 8665UE Processor Up to 64GB SATA3 Single LAN with Intel I210IT

• Industrial Automation & Control
• Machine Automation

Barebone 3.5in SBC SuperServer Single Intel Core i7 8665UE, System on Chip, Up to 64GB in 2 DIMM Slots, SATA3, Single LAN with Intel I210IT, 12V DC 60W Power Supply (CSE-E101-IA2 + X11SWN-H-WOHS)



    Option not available


    This combination does not exist.

    Add to Cart

    1. 8th Generation Intel® Core™ i7-8665UE Processor; Single Socket FCBGA-1528
    2. System-on-Chip
    3. M.2: M-Key 2242/2280, E-Key 2230, B-Key 2242/2280
    4. Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
    5. Dual GbE LAN w/ Intel i219LM + i210IT
    6. 4 COM (RS-232/422/485), 4 USB 3.1, 4 USB 2.0, 1 DIO via DB9
    7. 1 HDMI and 1 Display Port
    8. Fanless design

    Extra Specifications for Supermicro SYS-E100-9W-IA-H 3.5in SBC Single Intel Core i7 8665UE Processor Up to 64GB SATA3 Single LAN with Intel I210IT

    Product SKUs
    SYS-E100-9W-IA-HSuperServer E100-9W-IA-H ( Black )
    MotherboardSuper X11SWN-H-WOHS
    CPUSingle Socket FCBGA-1528
    CPU TDP support 15W
    8th Generation Intel® Core™ i7-8665UE Processor
    NoteBIOS version 2.0 or above is required
    System Memory
    Memory CapacityUp to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
    Memory TypeDDR4 up to 2400MHz
    DIMM Sizes32GB, 16GB, 8GB, 4GB
    Memory Voltage1.2V
    On-Board Devices
    ChipsetSystem on Chip
    Network ControllersSingle LAN with Intel® PHY I219LM
    Single LAN with Intel® I210IT
    AudioALC 888S HD Audio
    VideoIntel® UHD Graphics 620

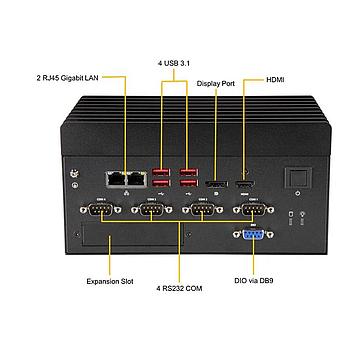

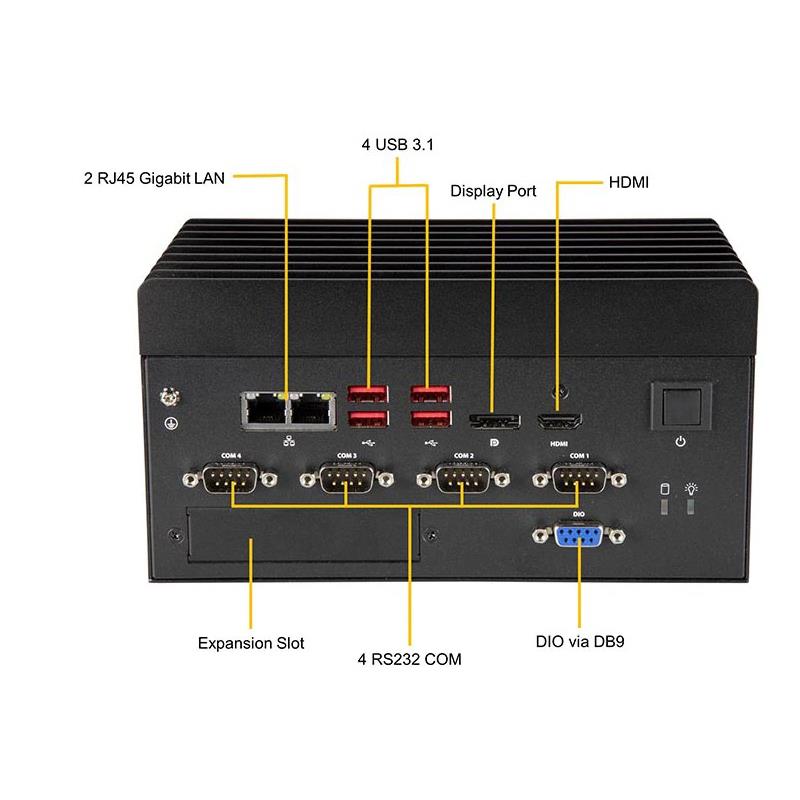

    Input / Output
    LAN2 RJ45 Gigabit Ethernet LAN ports
    USB4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
    Video Output1 HDMI and 1 Display Port
    COM Port4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
    Audio1 HD Audio header (Mic-in/Line-Out) (option)
    Others1 DIO via DB9
    1 TPM Chip
    Form Factor3.5" SBC
    Width7.64" (194mm) / 11.81" (300mm) - pkg.
    Height4.52" (115mm) / 5.12" (130mm) - pkg.
    Depth4.96" (126mm) / 11" (279mm) - pkg.
    WeightGross Weight: 4.3 lbs (1.95 kg)
    Net Weight: 3.7 lbs (1.68 kg)
    Available ColorsBlack
    Front Panel
    ButtonsPower On/Off button
    LEDsPower LED and Hard drive activity LED
    Expansion Slots
    M.2Key: B-Key, M-Key, E-Key
    M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2)
    M.2 2242/3042/2280 B-Key (USB 3.0/2.0 x1, SATA Gen3 x1) with nano SIM holder
    M.2 2242/2280 M-Key (PCI-E 3.0 x4, SATA Gen 3 x1), NVMe support
    System Cooling
    FansFan-less design
    Power Supply
    Power Supply12V DC 60W power adapter with Terminal Block
    System BIOS
    SoftwareWatch Dog
    SuperDoctor® 5
    Power ConfigurationsACPI Power Management
    Control of power-on for recovery from AC power loss
    Force Power On by Jumper
    CPU thermal trip support for processor protection
    +12V ~ +24V DC Wide power range input
    Operating Environment / Compliance
    RoHSRoHS Compliant
    Environmental Spec.Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
    Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
    Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature.
    NamePart NumberQuantityDescription
    Motherboard / ChassisMBD-X11SWN-H-WOHS1Super X11SWN-H-WOHS Motherboard
    Motherboard / ChassisCSE-E101-IA21Fanless Industrial Enclosure for 3.5" motherboard
    Power AdapterMCP-250-10134-0N160W 12V 3.33A, AC to DC power adapter w/ terminal block,HF,R

    Warranty:3 years labor, 1 year parts, 1 year advanced replacement (doa)
    Phone No.:305-640-0300
    URL:Click here for Manufacturer Website
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
