Supermicro SYS-E102-9W-L 3.5in SBC Single Intel i3 8145UE Processor Up to 64GB DIMM SATA3, NVMe Single LAN with Intel I210IT

• Industrial Automation, Retail
• Smart Medical Expert Systems
• Kiosk, Interactive info system
• Digital Signage

Barebone 3.5in SBC SuperServer Single Intel i3 8145UE, System on Chip, Up to 64GB in 2 DIMM Slots, SATA3, NVMe, 1x 2.5in drive bays, Single LAN with Intel I210IT 12V DC 60W Power Supply (CSE-E102 + X11SWN-L)


    502.00502.00502.0USD

    502.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    1. 8th Gen. Intel® Core™ i3-8145UE Processor; Single Socket FCBGA-1528
    2. System-on-Chip
    3. M.2: B-Key 2242/3042/2280, E-Key 2230, M-Key 2242/2280
    4. Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
    5. 1x 1GbE LAN, Intel PHY i219LM 1x 1GbE LAN, Intel i210IT
    6. 4 COM (RS-232/422/485) Opt., 4 USB 3.1, TPM onboard
    7. 1 HDMI and 1 Display Port
    8. Passive CPU Heat Sink and 1x 40mm Chassis Fan
    9. Lockable 12V DC 60W power adapter

    Extra Specifications for Supermicro SYS-E102-9W-L 3.5in SBC Single Intel i3 8145UE Processor Up to 64GB DIMM SATA3, NVMe Single LAN with Intel I210IT

    Product SKUs
    SYS-E102-9W-LSuperServer E102-9W-L ( Black )
    Motherboard
    MotherboardSuper X11SWN-L
    Processor/Cache
    CPUSingle Socket FCBGA-1528
    System-on-Chip
    CPU TDP support 15W
    8th Gen. Intel® Core™ i3-8145UE Processor
    NoteBIOS version 2.0 or above is required
    System Memory
    Memory CapacityUp to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
    Memory TypeDDR4 up to 2400MHz
    DIMM Sizes32GB, 16GB, 8GB, 4GB
    Memory Voltage1.2V
    On-Board Devices
    ChipsetSystem on Chip
    Network ControllersSingle LAN with Intel® PHY I219LM
    Single LAN with Intel® I210IT
    VideoIntel® UHD Graphics 620
    Input / Output
    USB4 USB 3.1 Gen2 ports (Type A)
    Video Output1 HDMI and 1 Display Port
    COM Port4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (option)
    OthersTPM onboard
    Chassis
    Form Factor3.5" SBC
    ModelCSE-E102
    Dimensions
    Width7.48" (190mm) / 11.81" (300mm) - pkg.
    Height1.72" (44mm) / 5.12" (130mm) - pkg.
    Depth4.72" (120mm) / 11" (279mm) - pkg.
    WeightGross Weight: 4.5 lbs (2.04 kg)
    Net Weight: 2.65 lbs (1.2 kg)
    Available ColorsBlack

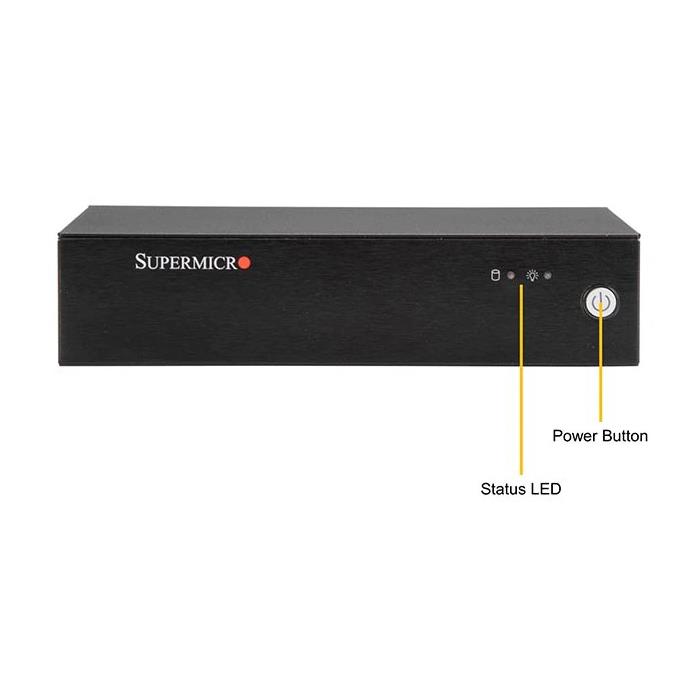

    Front Panel
    ButtonsPower On/Off button
    LEDsPower LED and Hard drive activity LED
    Expansion Slots
    M.2Key: B-Key, M-Key, E-Key
    M.2 2242/3042/2280 B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
    M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2)
    M.2 2242/2280 M-Key (PCI-E 3.0 x4, SATA Gen3 x 1), NVMe support
    Drive Bays
    Internal1 M.2 2242/2280 B-Key SATA
    1 M.2 2242/2280 M-Key (NVMe Support)
    1 SATA 2.5” 7mm SSD/HDD
    System Cooling
    FansPassive CPU Heat Sink and 1x 40mm Chassis Fan
    Power Supply
    Power SupplyLockable 12V DC 60W power adapter
    System BIOS
    BIOS TypeAMI UEFI
    Management
    SoftwareWatch Dog
    SuperDoctor® 5
    Power ConfigurationsACPI Power Management
    Control of power-on for recovery from AC power loss
    Force Power On by Jumper
    CPU thermal trip support for processor protection
    +12V ~ +24V DC Wide power range input
    Operating Environment / Compliance
    RoHSRoHS Compliant
    Environmental Spec.Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
    NamePart NumberQuantityDescription
    Motherboard / ChassisMBD-X11SWN-L1Super X11SWN-L Motherboard
    Motherboard / ChassisCSE-E1021Embedded Enclosure for 3.5" SBC
    Power AdapterMCP-250-10134-0N160W DC power adapter with US power cord 18AWG 6ft (0-40°C)
    Cooling FanFAN-0170L4140x40x10 mm, 7K RPM, SC101S Chassis Fan, RoHS
    CableCBL-0296L14 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    CableCBL-PWEX-10291PWR EXT,2X4F/P2.00 to 2x2M/P4.2, 12V,15CM,24AWG, 2.5A/pin, -20~80C, RoHS
    I/O ShieldMCP-260-10204-0B1CSE-E102 I/O shield for X11SWN

    Warranty:3 years labor, 1 year parts, 1 year advanced replacement (doa)
    Provider:Supermicro
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
