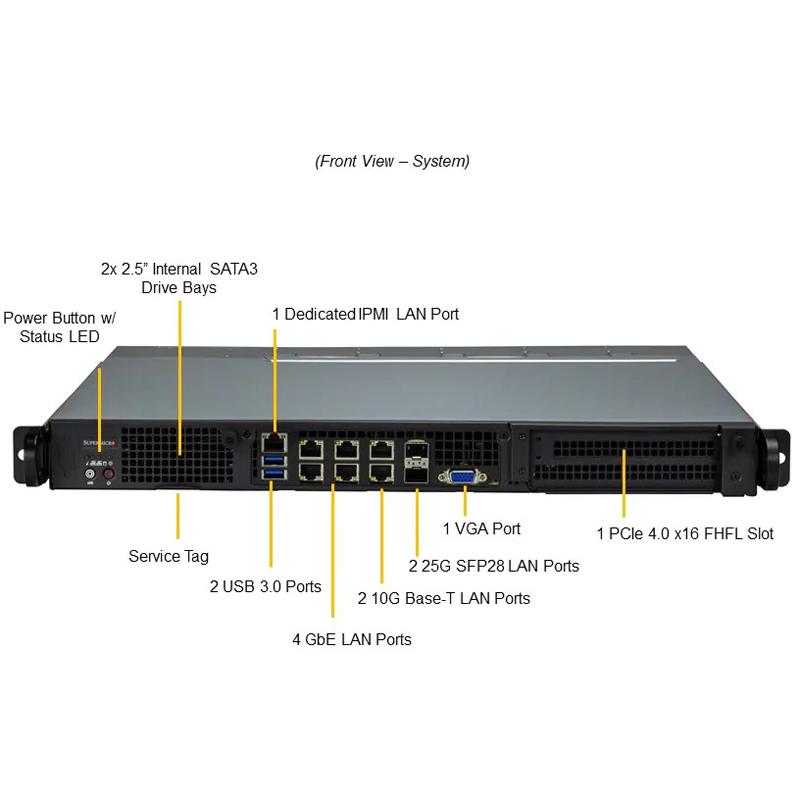

Supermicro SYS-110D-16C-FRDN8TP IoT Server 1U Barebone Embedded Intel Xeon D-2775TE Processor
Barebone 1U Rackmount SuperServer Embedded Intel Xeon Processor D-2775TE CPU TDP 100W, Intel SoC Chipset, Supports Up to 512GB DDR4-3200MHz RDIMM/LRDIMM in 4 DIMM slots, On-Board : SATA3 6Gbps via SoC controller (RAID), 2x Internal 2.5in SATA/PCIe drive bays, 1x M.2 NVMe OR 1 M.2 SATA3 (M-Key 2242/2280), 4x 1GbE LAN ports, 2x 25GbE SFP28 LAN ports, 2x 10GbE Base-T LAN ports, 1x IPMI, 600W DC Redundant Power Supply - (SYS-110D-16C-FRDN8TP + Super X12SDV-16C-SPT8F)
1. Intel® Xeon® Processor D-2775TE, CPU TDP 100W
2. Up to 256GB Registered ECC RDIMM, DDR4-2933MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2933MHz, in 4 DIMM slots
3. 2x Internal 2.5" drive bays(2x PCIe 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
4. 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
5. 1x M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
6. 5x 40x56mm Hot-swap Counter-rotation PWM Fans
7. Redundant 600 W, -48 Vdc
Extra Specifications for Supermicro SYS-110D-16C-FRDN8TP IoT Server 1U Barebone Embedded Intel Xeon D-2775TE Processor
| Motherboard | ||
| Motherboard | Super X12SDV-16C-SPT8F | |
| Processor | ||
| CPU | Single FCBGA-2579 | |
| Intel® Xeon® Processor D-2700 Series | ||
| Support CPU TDP 100W | ||
| System Memory | ||
| Memory | Memory Capacity: 4 DIMM slots | |
| Up to 256/512GB: ECC RDIMM/LRDIMM | ||
| Memory Type: 2933MHz ECC DDR4 RDIMM/LRDIMM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® SoC | |
| Network Connectivity | 4x 1GbE GbE | |
| 2x 25GbE SFP28 | ||
| 2x 10GbE Base-T | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| Management | ||
| Software | SuperDoctor® 5 | |
| IPMI 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control | |
| Temperature | CPU thermal trip support, PEPI Monitoring for CPU and chassis environment | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-515M-R000NP2 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 15.7" (399mm) | |
| Package | 7.9" (H) x 26.7" (W) x 23.8" (D) | |
| Weight | Net Weight: 18 lbs (8.16 kg) | |
| Gross Weight: 29 lbs (13.15 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| LAN2 activity | ||
| Drive Bays / Storage | ||
| Drive Bays | 2x 2.5" SATA/PCIe drive bays | |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 | |
| M-Key, 2242/2280 | ||
| System Cooling | ||
| Fans | 5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s) | |
| Power Supply | ||
| Total Output Power | 600W : (-44) - (-65) Vdc | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| +12V | Max: 50A | |
| 5V SB | Max: 3A / Min: 0A | |
| Certification | ||
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-110D-16C-FRDN8TP | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe Gen 4 x16 FHFL slot(s) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Cable | CBL-0191L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,50CM,PBF | |
| Cable | CBL-0483L | 2 | 29CM 30AWG SATA S/S CBL | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| *Drive Tray(s) | MCP-220-00137-0N | 1 | Dual 2.5 HDD bracket (bracket base follow std 2.5 | |
| *Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6 | |
| *Rail Set | MCP-290-00108-0B | 1 set | Inner rail, front, short (quick) for 1U 17.2 | |
| Air Shroud | MCP-310-51504-0B | 1 | Mylar Air Shroud for SC515M + X11 SDW | |
| Power Supply | PWS-601D-1R | 2 | -48V DC input, 12V and 5Vsb 600W output for 1U redundancy | |
| Riser Card | RSC-S-6G4 | 1 | 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro | |
| Motherboard / Chassis | MBD-X12SDV-16C-SPT8F | 1 | Super X12SDV-16C-SPT8F Motherboard |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
