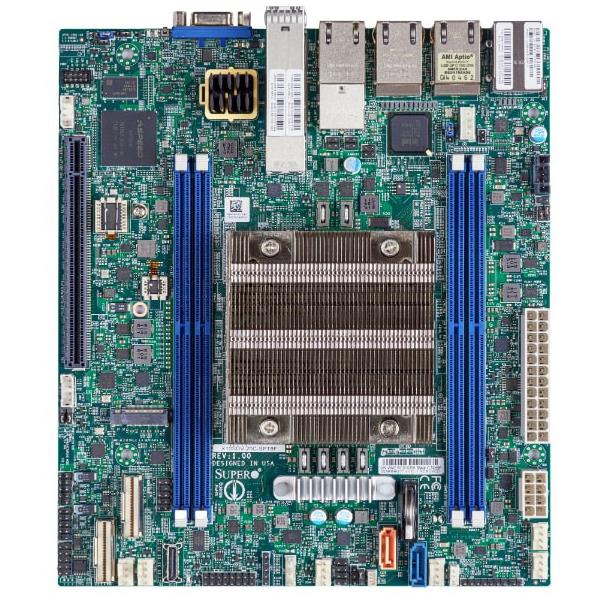

Supermicro X12SDV-8C-SPT8F Motherboard Micro-ATX Embedded Intel Xeon D-2733NT Processor
Embedded Intel Xeon Processor D-2733NT
Features PCIe 4.0, DDR4, SATA 3.0, M.2 slot
SoC controller for 2 SATA3 (6 Gbps) ports with RAID
The X12SDV-8C-SPT8F is a 1U Iot form factor motherboard
Motherboard Micro-ATX Embedded Intel Xeon D-2733NT Processor - Supports Up to 512GB DDR4-3200MHz RDIMM in 4 DIMM slots - On-Board : SATA3 6Gbps via SoC controller (RAID), 4x Gigabit LAN Ports, 2x SFP28 25 Gigabit LAN ports, 2x 10GBase-T ports, IPMI, 1 PCI-E 4.0 x16, 1 PCI-E 3.0 x4 (or 4x SATA), 2 PCI-E 4.0 x8, via SlimSAS, M.2 Form Factor: 2242/2280 (Key: M-Key) (MBD-X12SDV-8C-SPT8F-O)
Key Features
System on Chip
Intel Xeon Processor D-2733NT, CPU TDP 80W, Intel Quick Assist Technology
Up to 256GB Registered ECC RDIMM, DDR4-3200MHz, Up to 512GB LRDIMM LRDIMM, DDR4-3200MHz, in 4 DIMM slots
1 PCI-E 4.0 x16
2 PCI-E 4.0 NVMe x8 SlimSAS Internal Port
1 OCuLink Connector (4 SATA/PCI-E 3.0 x4), 1 M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
Quad 1G RJ45 with Intel I350-AM4, Dual 25G SFP28 with Intel SoC, Dual 10Gbase-T RJ-45 with Intel Ethernet Controller X550-AT2
SoC controller for 2 SATA3 (6 Gbps) ports, RAID 0,1
12V DC or ATX Power Input
Extra Specifications for Supermicro X12SDV-8C-SPT8F Motherboard Micro-ATX Embedded Intel Xeon D-2733NT Processor
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | Micro-ATX | |
| Dimensions (WxDxH) | 7.5" x 8.5" (19.05cm x 21.59cm) | |
| Processor | ||
| Compatible Processors | Intel Xeon Processor D-2733NT | |
| Compatible Socket | Single Socket FCBGA-2579 supported, CPU TDP supports Up to 80W TDP | |
| Cache/Cores | Up to 8 cores / 15MB Cache | |
| System Memory | ||
| Memory Capacity | 4 DIMM slots, Up to 512GB ECC LRDIMM, DDR4-3200MHz, Up to 256GB ECC RDIMM, DDR4-3200MHz, Up to 512GB ECC/non-ECC, DDR4-3200MHz | |
| Memory Type | 3200/2933/2666/2400MHz ECC/non-ECC DDR4 LRDIMM, RDIMM | |
| DIMM Sizes | LRDIMM: 64GB, 128GB, RDIMM: 8GB, 16GB, 32GB, 64GB, UDIMM: 4GB, 8GB, 16GB, 32GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA RAID | SoC controller for 6 SATA3 (6 Gbps) ports, RAID 0,1,5,10, 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) | |
| IPMI | ASPEED AST2600 BMC | |
| Graphics | ASPEED AST2600 BMC | |
| Network Controllers | Dual LAN with 25G SFP28 LAN via SoC, Dual LAN with Intel X550 10GBase-T Ethernet Controller, Quad LAN with Intel i350 Gigabit Ethernet Controller | |
| Input / Output | ||
| SATA | 2 SATA3 (6Gbps) port(s) | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports, 2 SFP28 25 Gigabit Ethernet LAN ports, 2 RJ45 10GBase-T ports | |
| USB(s) | 4 USB 2 port(s) (4 via header), 2 USB 3 port(s) (2 rear type A) | |
| Video Output | 1 VGA D-Sub Connector port(s) | |
| Serial Ports | 1 COM Port(s) (1 header) | |
| DOM | 1 SATA DOM (Disk on Module) power connector support | |
| TPM | TPM Header & Chip both | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 4.0 x16, 1 PCI-E 3.0 x4 (or 4x SATA), via Oculink, 2 PCI-E 4.0 x8, via SlimSAS | |
| M.2 | Key: M-key | |
| Form Factor: 2242/2280 | ||
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 | ||
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| BIOS Features | ACPI 6.3, UEFI 2.7, SMBIOS 3.3, Plug and Play (PnP), PCI FW 3.0 | |
| Management | ||
| Software | Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5, SSM, NMI, SUM, SPM | |
| Power Configurations | ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery | |
| FAN | 6x 4-pin fan headers (up to 6 fans), System level control, PWM fan speed control, Fan speed control, 6 fans with tachometer status monitoring, Overheat LED indication, Dual Cooling Zones | |
| PC Health Monitoring | ||
| Voltage | 3.3V standby, +5V standby, +5V, +3.3V, +12V, Memory Voltages, Monitors CPU Core Voltages | |
| LED | UID/Remote UID, BMC/IPMI Heartbeat LED, Overheat/Fan Fail/PWR Fail LED, Power Indicator LED, LAN temperature | |
| Temperature | CPU thermal trip support, peripheral temperature, System temperature, Memory temperature, NVMe temperature, Platform Environment Control Interface (PECI)/TSI | |
| Other Features | UID, RoHS, Node Manager Support, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology | |
| Environmental | ||
| Operating Environment | Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range: 10% - 85% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 10% - 95% (non-condensing) | ||
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) | ||
| Miscellaneous | ||
| Compatible Servers | SYS-110D-8C-FRAN8TP, SYS-110D-8C-FRDN8TP | |
| Parts List - (Items Included) | ||
| Cable(s) | 1x CBL-CDAT-0605, 1x CBL-SAST-0933, 1x CBL-SAST-0956, 2x CBL-0044L | |
| I/O Shield(s) | 1x MCP-260-00098-0N | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
