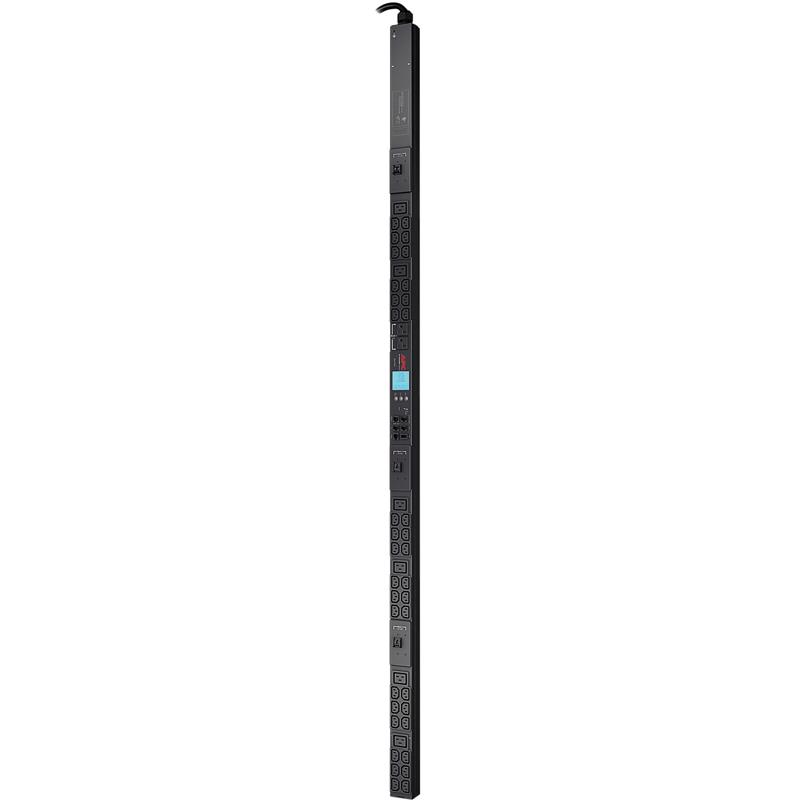

APC AP8865 Rack PDU 2G Metered Zero U 44-Outlets

• Local Current Monitoring Display
• Flash Upgradeable; Load indicator LED
• Includes horizontal; vertical; toolless-mount
• Integrates with StruxureWare Data Center Expert

Rack PDU 2G Metered Zero U, 44-Outlets, 8.6kW, 208V, 36x C13 and 6x C19 and 2x 5-20 - Rack-mountable



    Option not available


    This combination does not exist.

    Add to Cart

    • Local and web-based monitoring. Status available to customers both in the data center and remotely
    • Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
    • Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits

    Extra Specifications for APC AP8865 Rack PDU 2G Metered Zero U 44-Outlets

    Main Specifications
    Device Type Power distribution strip - rack-mountable
    Dimension(s) (WxDxH) 2.2 in x 1.8 in x 70.5 in
    Enclosure Color Black
    Form Factor 0U
    Weight 16.8 lbs
    Remote Management Protocol SNMP, Telnet, HTTP
    Power Device
    Circuit Protection Circuit breaker
    Frequency Required 50/60 Hz
    Input Connectors Power NEMA L21-30
    Input Voltage AC 208 V
    Max Electric Current 30 A
    Output Voltage AC 208 V
    Power Capacity 8.6 kW
    Power Output Connectors Details 36 x power IEC 320 EN 60320 C13
      6 x power IEC 320 EN 60320 C19
      2 x power NEMA 5-20
    Expansion / Connectivity
    Interfaces 1 x management
    Environmental Parameters
    Humidity Range Operating 5 - 95%
    Max Operating Temperature 113 °F
    Min Operating Temperature 41 °F
    Cables Included 1 x power cable - 6 ft, 1 x serial cable - external
    Compliant Standards CSA C22.2, RoHS, UL 60950-1
    Features LCD display, current meter, LED indicators, overload protection
    Rack Mounting Kit Included
