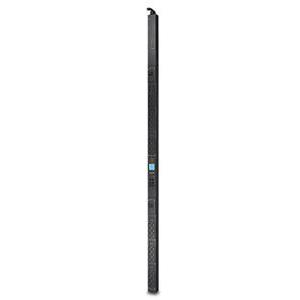

APC AP8841 Rack PDU 2G Metered Zero U 42-Outlets

• Remote Management Capabilities
• Wide range of input and output connections
• Quickly and easily upgrade firmware via network
• Integrates with StruxureWare Data Center Expert

Rack PDU 2G Metered Zero U, 42-Outlets - 30A, 200/208V AC, 36x C13 and 6x C19 - Rack-mountable



    Option not available


    This combination does not exist.

    Add to Cart

    • Local and web-based monitoring. Status available to customers both in the data center and remotely
    • Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
    • Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
    • Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip

    Extra Specifications for APC AP8841 Rack PDU 2G Metered Zero U 42-Outlets

    Main Specifications
    Device Type Power distribution strip - rack-mountable
    Dimension(s) (WxDxH) 2.2 in x 1.7 in x 70.5 in
    Form Factor 0U
    Weight 15.1 lbs
    Remote Management Interface Ethernet 10/100, RS-232
    Remote Management Protocol SNMP, Telnet, HTTP
    Power Device
    Circuit Protection Circuit breaker
    Frequency Required 50/60 Hz
    Input Connectors 1 x power NEMA L6-30
    Input Voltage AC 200/208/230 V
    Input Voltage Range AC 200 - 240 V
    Max Electric Current 24 A
    Output Connectors Details 36 x power IEC 320 EN 60320 C13, 6 x power IEC 320 EN 60320 C19
    Output Voltage AC 200/208 V
    Expansion / Connectivity
    Interfaces 1 x management (Ethernet) - RJ-45, 1 x management (RS-232)
    Environmental Parameters
    Humidity Range Operating 5 - 95%
    Max Operating Temperature 113 °F
    Min Operating Temperature 23 °F
    Cables Included 1 x serial cable - external, 1 x power cable - 10 ft
    Compliant Standards VDE, IEC 60950, CSA 22.2 No. 60950, RoHS, UL 60950-1, REACH
    Features LCD display, overload protection
    Rack Mounting Kit Included
